How to Make a Pallet Herringbone Serving Tray in 20 Steps

  • 2 pallets

  • medium

  • 8h

  • $20

I didn't like the Ikea serving tray my wife bought so I built this awesome one. I liked the herringbone pattern and wanted to try it out.

Here is how I built it:

  1. I cut a sheet of 3 ply to the size I wanted with a hand saw.
  2. Next, I picked out some dark and light colored wood for the pattern. I wanted light and dark, light and dark, etc.
  3. I measured and cut each piece to fit on the ply cut ply.
  4. Gave the underside of each piece a rough sand with 60 grit sandpaper
  5. Glue!! I didn't use any nails because I wanted each piece of timber to look 100% itself. I glued the back and each side.
  6. Glue!!! Again... it took a while because I didn't have many clamps, so I had to wait for a few pieces to dry before moving on.

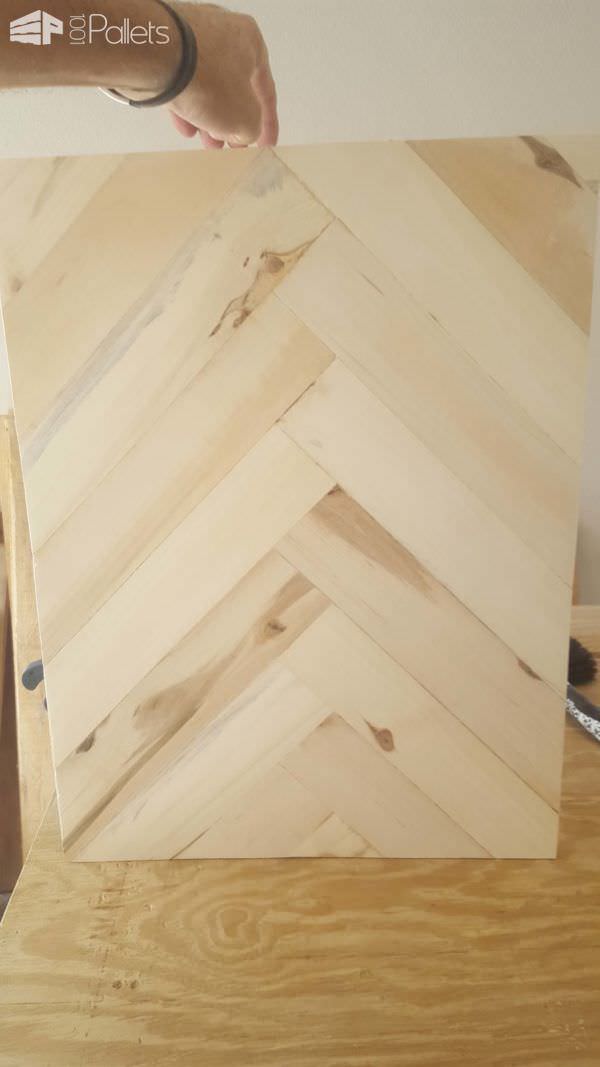

  7. Sanding. 60 Grit with the orbital then 120 till smooth. This took a while.

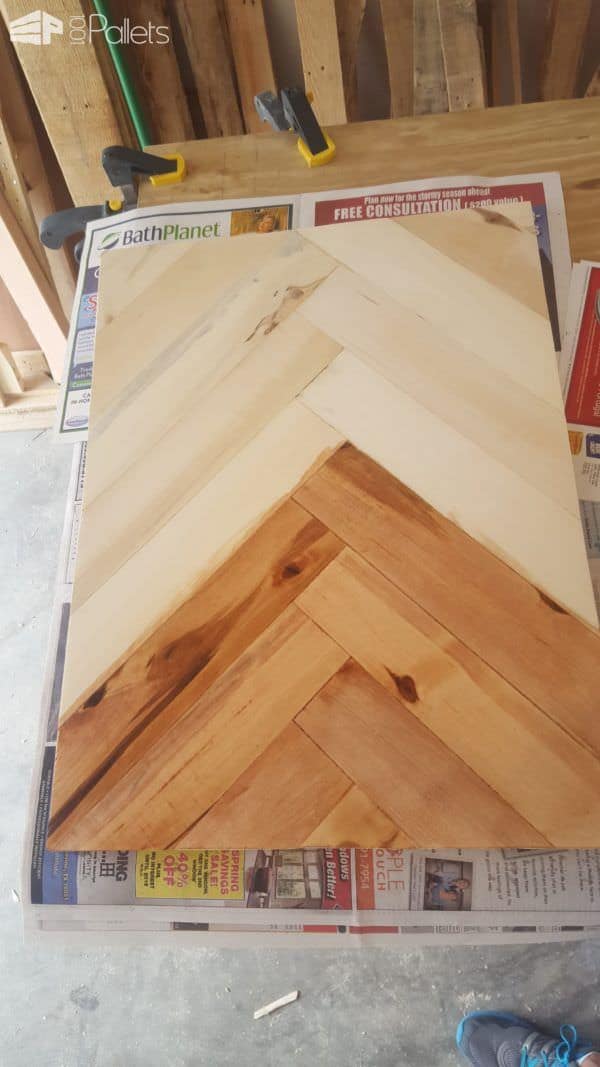

  8. Even though I cut all four sides on my table saw, I still had gaps, so I used glue and sawdust to fill the gaps then sanded again.
  9. For some reason, I thought I should stain it before I put the sides on. Oops! When I put the sides on, I had some gaps.
  10. Cut side pieces to fit.
  11. Sand board edge to better fit side boards.

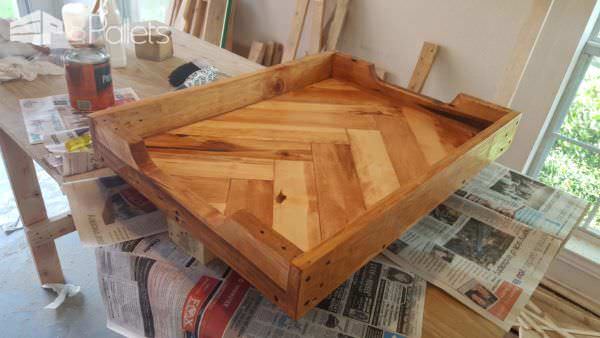

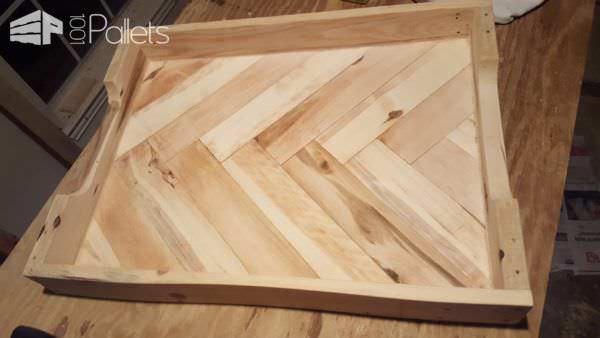

  12. Attach sides.
  13. Sand, again... 60 then 120 then 200.
  14. Fill gaps between side boards base with glue and sawdust.
  15. Sand again!!!! This time, it was hard with all the corners.
  16. Stain with a light stain to keep the color of the wood bright.
  17. Poly with a brush.
  18. Sand with a 220 (I think) till it was smooth.
  19. Poly again.

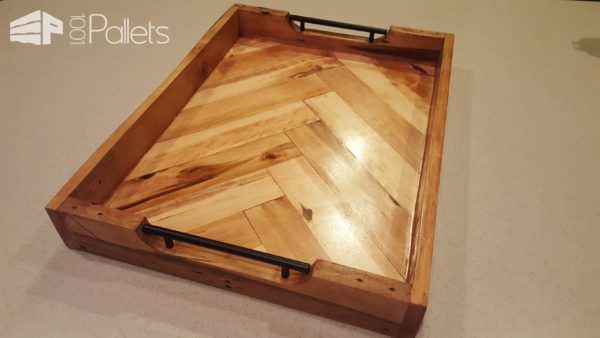

  20. Add handles. I hadn't decided what handles to use, so they came a few days later.
  21. (BONUS) Share of Facebook and 1001 Pallets!
  22. (BONUS) Get orders from my friends!

How to Make a Pallet Herringbone Serving Tray in 20 Steps Pallet Home Accessories
How to Make a Pallet Herringbone Serving Tray in 20 Steps Pallet Home Accessories
How to Make a Pallet Herringbone Serving Tray in 20 Steps Pallet Home Accessories

How to Make a Pallet Herringbone Serving Tray in 20 Steps Pallet Home Accessories
How to Make a Pallet Herringbone Serving Tray in 20 Steps Pallet Home Accessories
How to Make a Pallet Herringbone Serving Tray in 20 Steps Pallet Home Accessories

7
Join the Conversation!

avatar
  Subscribe
newest oldest
Notify of
Kwesi
Kwesi

Which glue did you use?

J. Curry
J. Curry

Looks fantasic. I have a ? When you say “ply” do you mean plywood? I’ve never heard the term used to refer to anything else but it doesn’t look like there is any used in your build. Also, I use wire paint stripping drill attachments instead of course sandpaper for prepping the lumber and then hit it with my old school craftsman belt sander and 80 grit if I want to get down to “fresh” wood. It’s quicker and I don’t go through and I don’t blow through a 5 pack of disks on one project.

Ribeiro Leeyn

Delbo Pereira eu quero…

Michelle Turpin

Does he take orders ? Xx

Debs Rattray

Can do xx

Heather Stiletto

Simply beautiful!

Mauricio Peña

Joe Palacios for your snacks
