Tiny Off Grid Cabin Made from Pallets & Reclaimed Lumber

This cabin is mostly made from pallets and reclaimed lumber from dumpsters and local landfill. I started this cabin on November 7th of 2014. I have enjoyed building without any plans. I just use the material that I had and figure it out as I go.

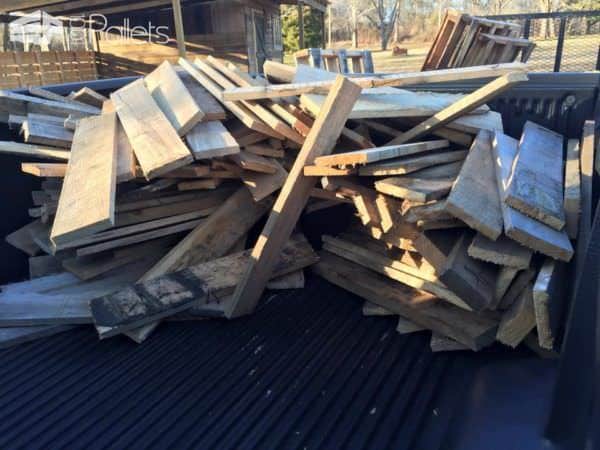

I have bought the 4x4's that supports the frame of the cabin. They are concreted into the ground. I purchased the treated 2x4's that make up the structure of the roof and floor, and I bought Advantech sheets (4x8 Sheets) for the flooring. The rest is pallet wood and reclaimed lumber. I got a great deal on the metal for the roof; a local hardware store was going out of business, and I bought all they had. I used it all on this project. My three dogs and I have built every piece of it. We've done it all.

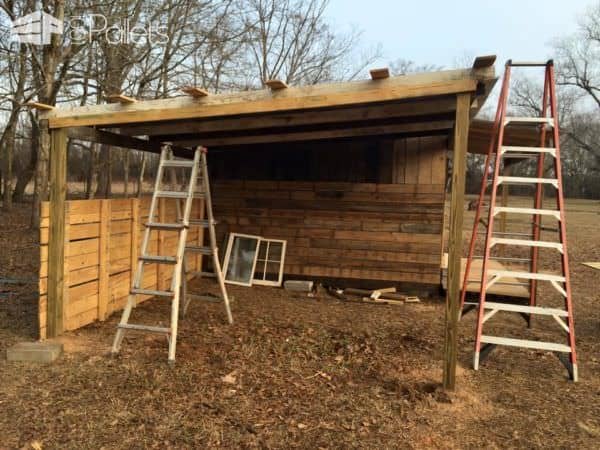

The cabin is 12'ft x 12'ft, and I squared it up by laying like pallets on the ground and then I just dug holes for the 4x4's beside the pallets as they were on the ground. I set the 4x4's in concrete, and then I let the concrete cure for a few days and on November 9th of 2014, I laid the first pallets for the frame. The framing is made of larger than normal pallets, 8' to 10' ft in length and about four ft wide. I got all the framing pallets from the landfill. The pallets are set on concrete blocks that were leveled. I attached the pallets to the 4x4's, and I attached the pallets together using 2x4's.

Once I got the frame up I then started using old decking wood as the siding I got from a friend that replaced his deck around his pool. Once the siding was on, I added the roof. I got the window on the front of a friend that recently replaced their windows on their house. The front porch is one big pallet from Lowes. It's made up of landscape timber on the bottom and 2x4. I used reclaimed lumber I had to put on top of the pallet. It turned out just right to set a rocking chair on.

Then I added the frame on the floor and put the Advantech sheets on top of the frame of the floor. I then started on the lean 2 I added. I once again purchased the 4x4's and set them in concrete. The frame for the roof on the lean 2 come from a large pallet from Lowes' and the local landfill. I added a large pallet for the back wall under the lean 2. Just something to block the wind because this is where I'm going to be BBQ'n.

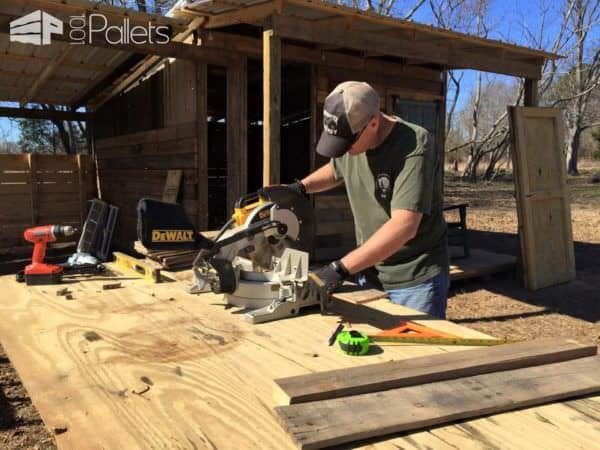

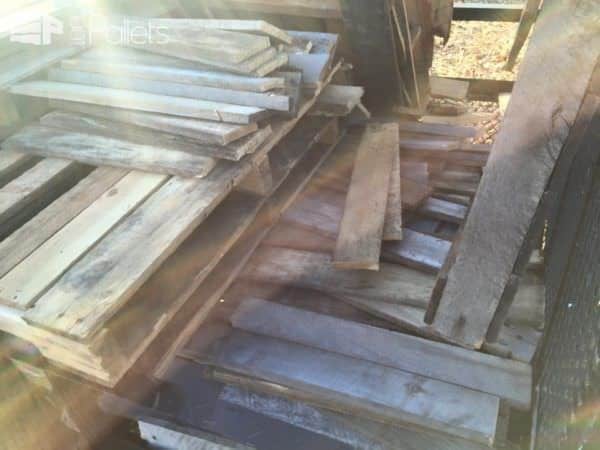

I then added the front door, and the door, believe it or not, was found in a dumpster. It was an awesome find. This is where I'm at. This weekend (Feb 14) I am taking some broken down pallet wood to get planed to the same thickness to install on top of the Advantech sheets. It's mostly red oak and should make a beautiful hardwood floor. Then I will be insulating the walls/ceiling, adding a wood stove, pallet furniture, etc...

So, I hope you check out my Facebook page to keep up with the updates.
