Workshop and toolsPallet Trailer for Quad/Mower/Hand

gravatar

by Mason Allen

Pallet Trailer for Quad/Mower/Hand

  • n/a

  • medium

  • 4h

  • $35

To build this pallet trailer, you will need about 3 wood pallets. One very sturdy one, the other two you will need just the 2×4 support beams.

You also need:

  • 2x 13in tires
  • 2x 5/8×7 inches bolts
  • 2x 5/8 lock nut
  • 5/8 washers
  • 3x 1/8 screws
  • 5/8 spade bit
  • 1x 3/8 spade bit

How to build it:

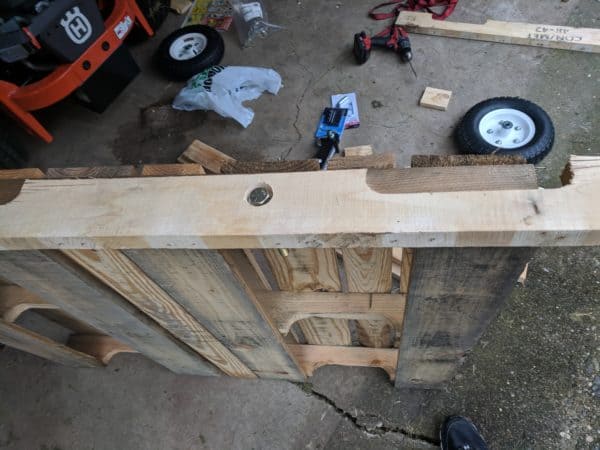

Take 4 of the 2×4 pallet wood and drill1-3/8 hole roughly halfway through (stick bolt head and washer in the hole), then finish with 5/8 hole 20-inches from the end and 1-1/8 up.

Take the 2×4 pallet wood and cut into eight 4-inches sections.

Take remaining four 2×4 and screw together lining axle up and using 4in as spacers. I did at both ends and then a few inches from the tire.

Bolt bolt through the hole and use remaining washers as spacers between tire and 2×4 so it won’t wobble as much.

Screw axle/tire keeper to skid.

Take the leftover 2×4 and screw to center of the pallet and use as a handle.

Eventually will make an actual tongue to mount to mower/quad. I don’t have a hitch yet to measure how high tongue has to be.

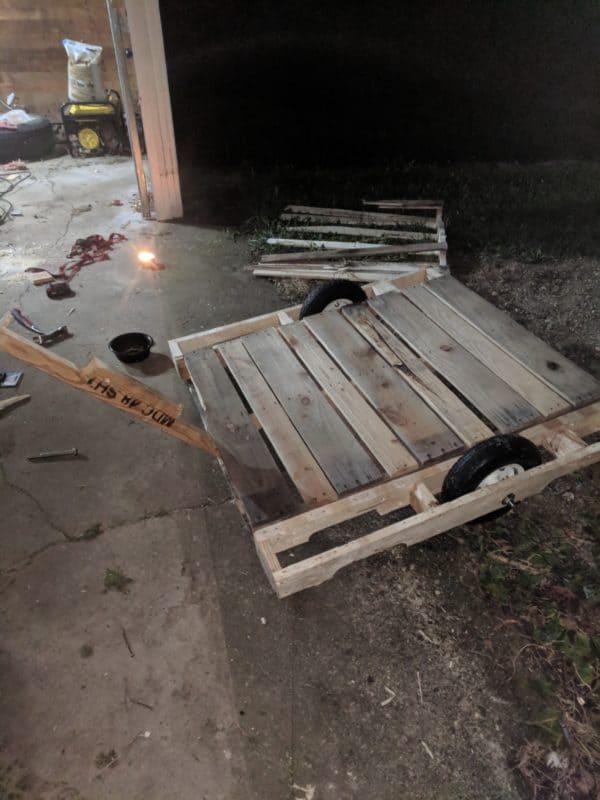

Pallet Trailer for Quad/Mower/Hand Other Pallet Projects Workshop and tools
