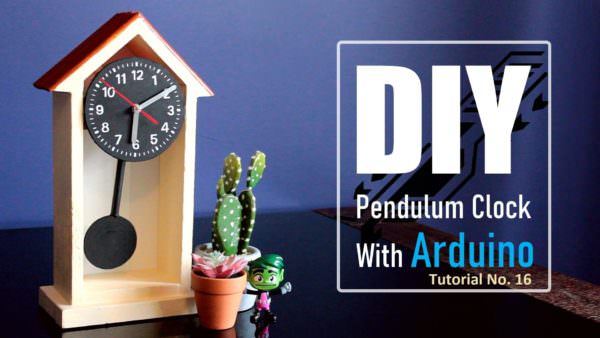

Diy – Pallet Pendulum Clock

  • 1 pallet

  • easy

  • 5h

  • $20

A pendulum clock is a clock that uses a pendulum, a swinging weight, as its timekeeping element. The advantage of a pendulum for timekeeping is that it is a harmonic oscillator: it swings back and forth in a precise time interval dependent on its length and resists swinging at other rates.

From its invention in 1656 by Christiaan Huygens until the 1930s, the pendulum clock was the world’s most precise timekeeper, accounting for its widespread use.

Let see how to build a pendulum clock out of pallet wood.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

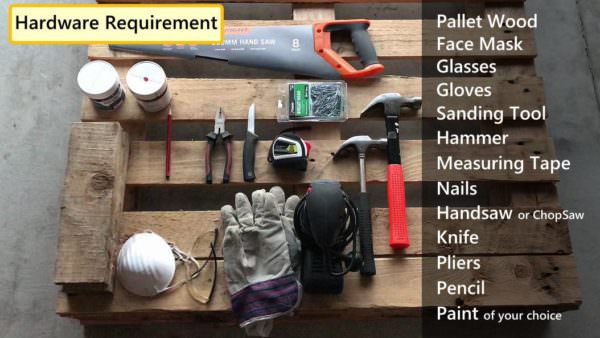

Material, equipment & tools needed:

  • Pallet Wood
  • Face mask
  • Glasses
  • Gloves
  • Sanding Tool
  • Hammer
  • Measuring Tape
  • Nails
  • Handsaw or Chop-saw
  • Knife
  • Pliers
  • Pencil
  • and Paint of your choice
Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

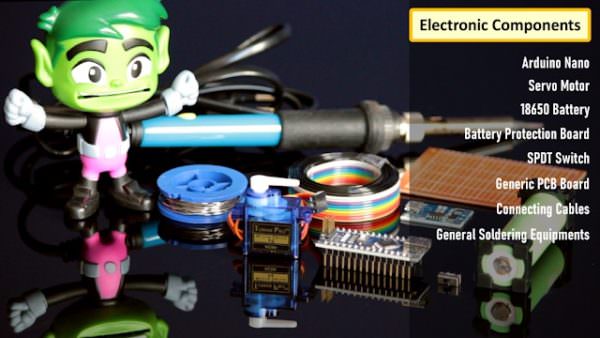

Electronic Components:

  • 1 x Arduino Nano
  • 1 x Servo Motor
  • 1 x 18650 Battery or a 5v DC Buck Step-Down Module
  • 1 x Battery Protection Board
  • 1 x SPDT Switch
  • 1 x Generic PCB
  • Connecting Cables
  • and General Soldering Equipments
Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

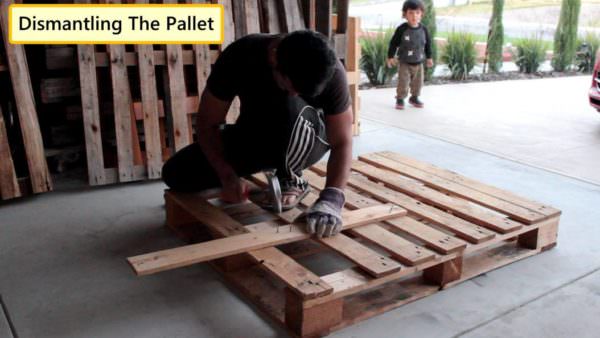

Dismantling the pallets

First, you will dismantle one wood pallet with 2 hammers. You can see how to take apart a pallet.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

Sanding the pallet planks

After disassembling the pallet, let’s start by sanding the boards to give them a pleasant and smooth texture.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

Wood Cutting

Next using a chop-saw, cut the two sides, bottom and the top sections of the clock.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

Building the clock case

Assembling the sides

Once all the sides are ready it’s time to join them all together. We recommend to use screws to hold the sides of the clock.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

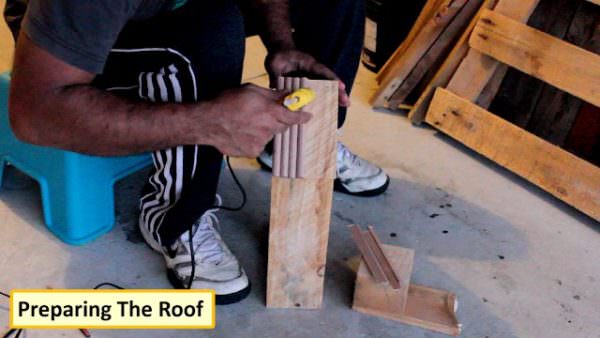

Assembling the roof

You can use an edge decorative stick to prepare the roof of the clock.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

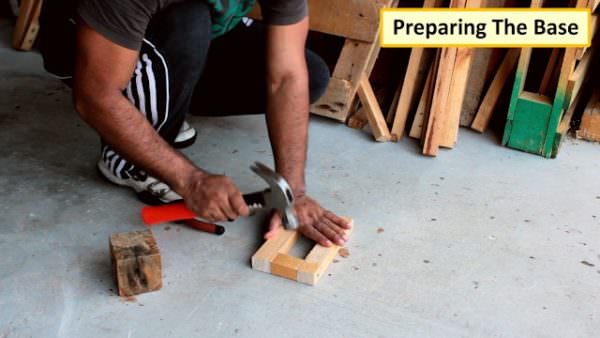

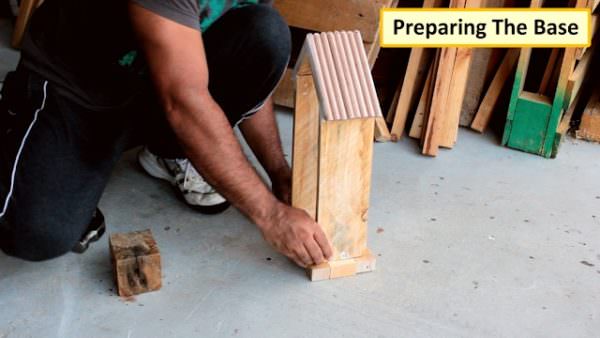

Preparing the base

Using some of the leftover wooden blocks, you’ll be able to prepare the base of the clock.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks
Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

Filling the groves

To fill in the gaps, you can add a bit of PoP to the groves. However, as we all know two dis-similar materials like wood and plaster expand and contract at different rates. For any sort of permanence you need to isolate the movement of each relative to the other.

This problem is commonly encountered when you paint the siding on a house. However, this clock is not going to move a lot and will not be placed outside the house so adding a bit of PoP would not really matter as long as I seal it properly.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

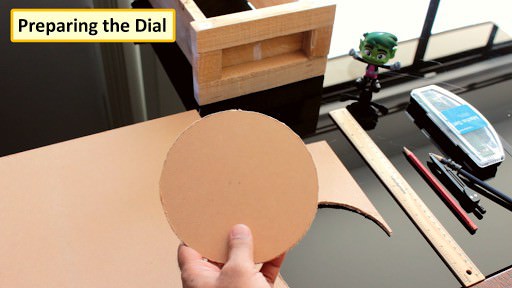

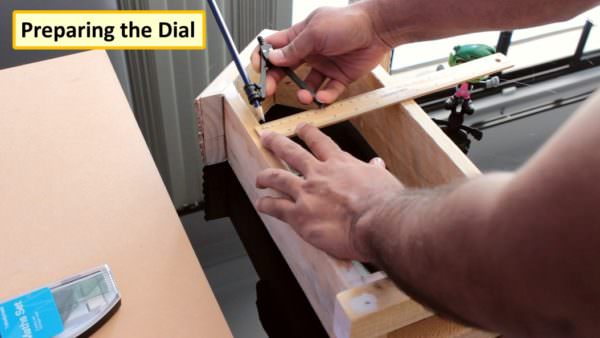

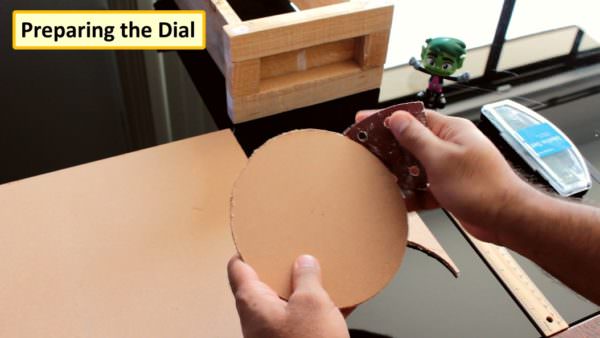

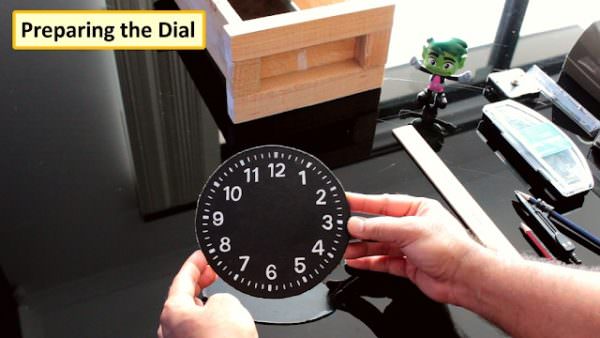

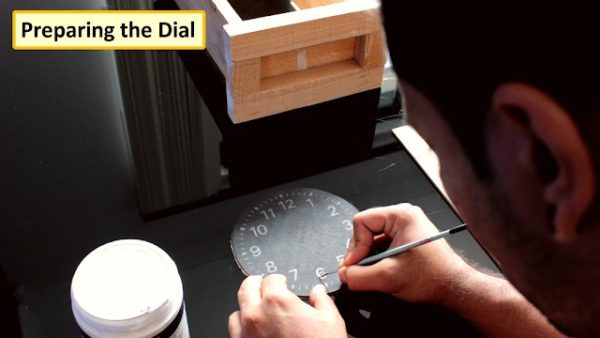

Preparing the Dial

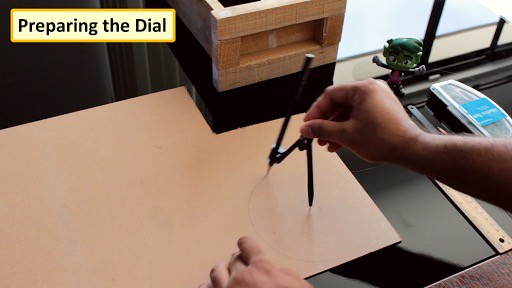

Prepare the dial of the clock using a board extracted from a broken chest’s drawer.

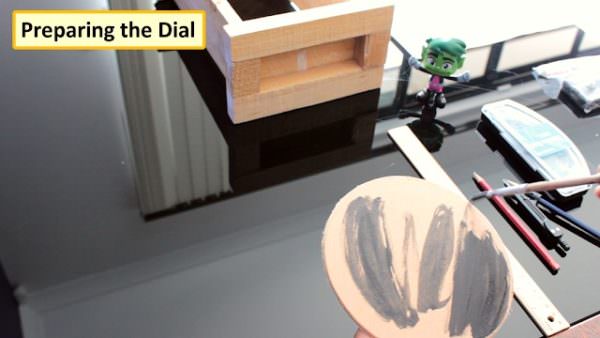

The plan is to have a dark-colored dial and a light-colored housing for it. You can paint the dial in black, but it’s up to you the color you prefer for the dial.

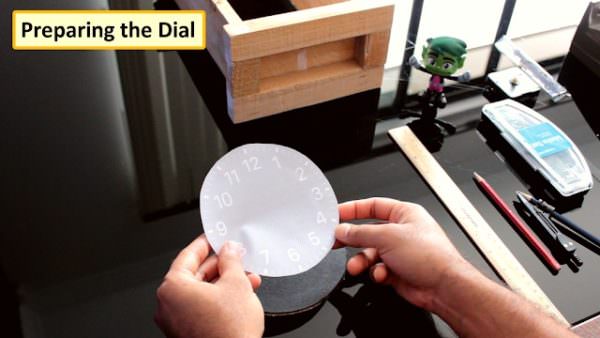

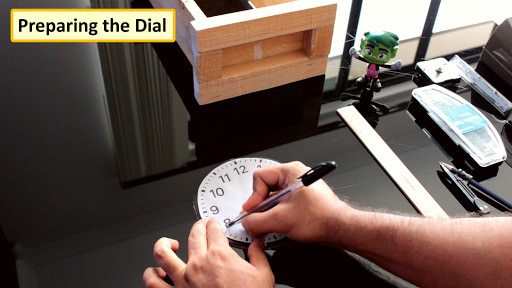

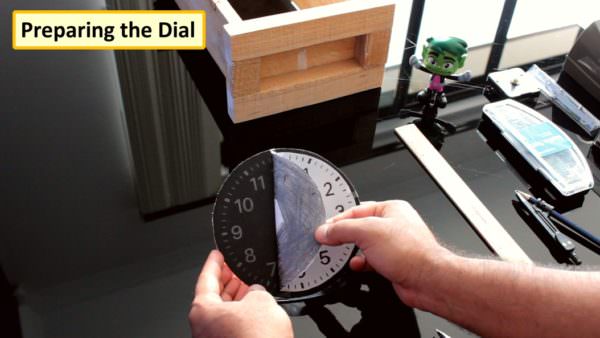

For the numbering bit, you can use a printed sheet and a stencil to transfer the numbers from the sheet over to the circular board.

Once all the numbers are transferred, paint the graphite impressions with white color.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks
Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

After giving the finishing touch, drill a hole in the center of the circle and place a $2 watch circuitry which you can buy online.

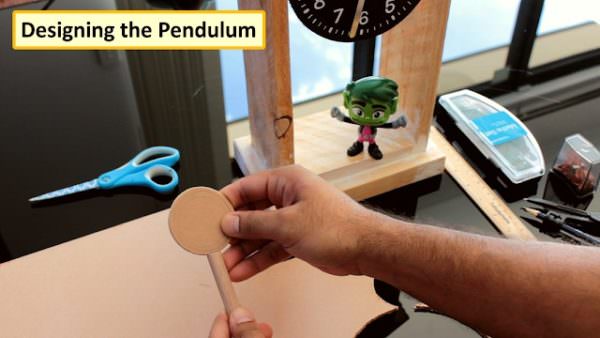

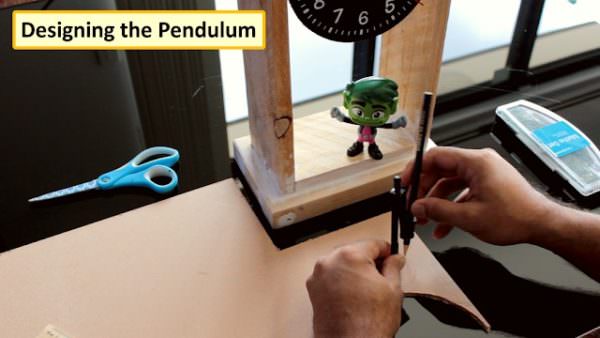

Designing the Pendulum

Now, from the same compress wood board, extract another circle which will be used for the pendulum of the clock.

Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks
Diy – Pallet Pendulum Clock DIY Pallet Video Tutorials Pallet Clocks

For more information on the assembly of electronic part of the clock, check-out the tutorial at DIY Projects4U.

Check out the video below for the step-by-step tutorial.
